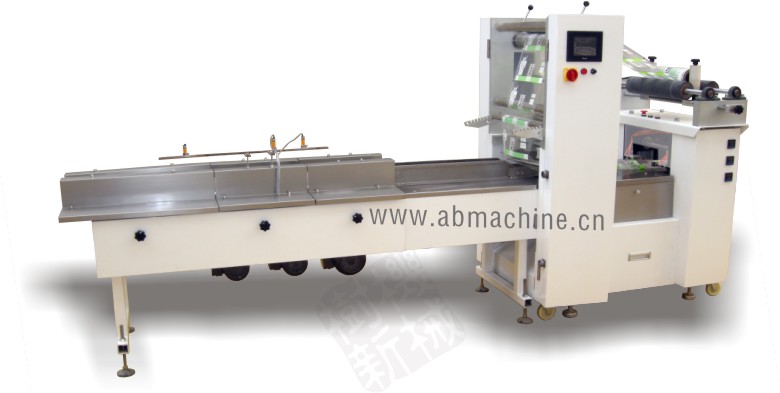

SMZ-600 Pillow packing machine(suitable for packing big size product and product with plate )
- This is a new big packing machine, The original four axis drive control system, film centerless positioning, roll film are not afraid of its weight. And configurable automatic feeding device, fully automatic packaging can be realized. Use for paper rol
- Tel：+86 15721208277
-
Content
|
SMZ-600 Pillow packing machine(suitable for packing big size product and product with plate) |
Price: (Standard configuration)
Standard Fob Shanghai Port price: *****USD
Control system: four-motor drive
Human-machine interface:colorful touch screen
Spare parts: each present a set
Attachment: present a coding machine
Warranty: 1year
Warranty period: 12 months for free
After sale service: Free training, free installing, free spare parts
Payment: TT, 50% for deposit, balance after machine finished.
Shipping: Standard sea wooden case
Special need: OEM is ok
Features
SMZ - 600/900 automatic packing machine is designed by our company independent , it is suitable for large articles or big packing with box , original four-motor drive, digitizing input parameters, quickly alignment at the cursor, with three-dimensional angular institution at the same time, aplly to the big packing with box, packing, sealing smooth and nice, angular symmetry, on the stability, is the ideal packaging equipment of big packing.apllied object, for example: in the moderate packaging of biscuits, european-style cakes two packing , four packing, quick-frozen box food , paper roll packing
1. Patent product is characterized by special structure, convenient operation and stable performance;
2. Centerless positioning of the roll membrane can use the roll membrane with larger diameter and the membrane sending precision will not be influenced by its weight;
3. Man-machine interface: bag length, material level, cursor place, coding, air-flushing and other functions can be realized with digital setting; Directly inputting on the screen and then saving for debugging for the next time;
4. Fault self-diagnosis function makes it easy to display the fault;
5. Specially designed bag holder and lifting horizontal sealing structure can flexibly adapt to the packaging materials in different specifications;
6. You will finally select your favorite one among several optional configurations and perfect functions;
7. It is used with SMT-160, to iron the sealed mouth on both ends after packaging;
8. Material supply system can be automatically matched to realize automatic feeding;
Parameter
Model SMZ-600
Fillm width 600mm
Bag length 150-500mm
Product width 50-150mm
Product thickness 10-120mm
Film roll diameter <450mm
capacity 10-150bag/min
power 220V/4KW
weight 750KG

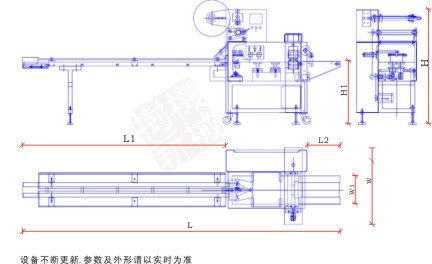

L 3950mm
W 950mm
H 1450mm
L1 2500mm
L2 400mm
W1 380mm
H1 800mm
Model SMZ-900
Film width 900mm
Bag length OEM
Product width OEM
Product height OEM
Film roll diameter <400mm
Packing Speed 10-100bag/min
Power 220V/4KW
weight 850KG
L 3950mm
W 1500mm
H 1450mm
L1 2500mm
L2 400mm
W1 600mm
H1 800mm
It also can be OEM to meet your special request of the packing range of the size.
Video Related
SMZ-600 Packaging paper rolls assembly line
SMZ-600 Pillow packaging machine packaging paper rolls
Packaging machine for packaging of beef, lamb, pills, quick-frozen food
SMZ-600 Pillow packaging machine packaging petri dish
SMZ-600 Pillow packaging machine packaging gloves
Samples Related
Sample Related

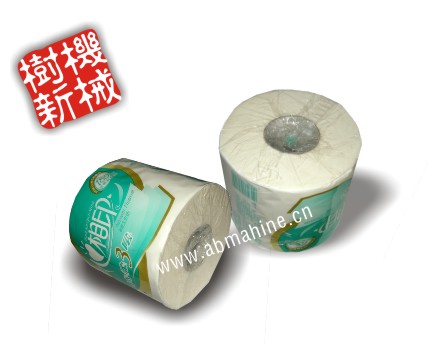

This machine matching with SMZT-160 can be for packing toilet paper roll, it can finish packing and heating shrinking at the same time. It also can be used for packing beef slices, mutton slices, baozi, steamed buns with plate.
( Beef slices packing
machine, mutton slices packing machine, paper roll packing machine).
